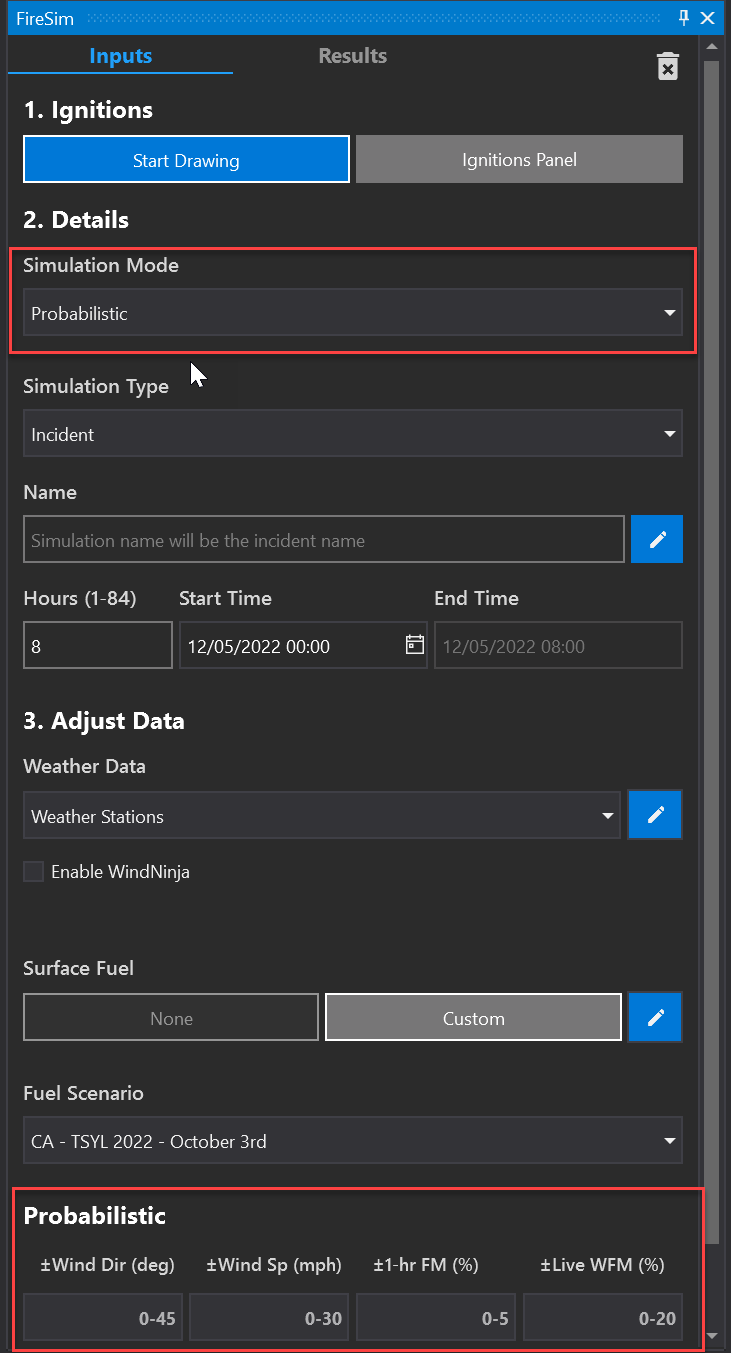

Selecting Probabilistic from the Simulation Mode menu will expand the bottom of the FireSim panel to include Probabilistic inputs.
Probabilistic mode provides the ability to adjust variability on four inputs:
-
Wind Direction (degrees)
-
Wind Speed (mph)
-
1hr Fuel Moisture (%)
-
Live Woody & Herbaceous Fuel Moisture (%)
A range of acceptable values is displayed in each field. Key in values for the inputs you would like to use and set the others to zero.
Probabilistic mode uses a Monte Carlo method to run fifty simulations using the input data and will overlay all simulation outputs together to create a probabilistic surface.
___________________________________________________________________________________________________________________
The legend at the bottom of the results panel shows that 80% or more of the simulations impact the area in red. 60% of the simulations will impact the area in orange, 40% for green, 20% for blue, etc, given the variables entered.
